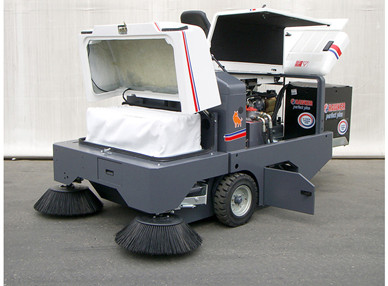

Product name: Dulevo 100 sweeper of driving type
Applicable scope: Heavy Industry
Product model: 100EH、 1100DK
Producing area: Italy
Brand: Dulevo
Product Description:
The action of the brooms throws the dust and the debris into a large capacity hopper.
The dust is controlled and aspirated by a powerful turbine that blows clean air through a high performance filter.
The dust filter is made of a special filtering fabric that ensures zero dust emission into the environment and releases only clean air.
Product Features:

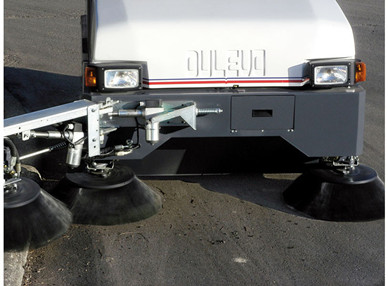

- Direct throw sweeping system for outstanding cleaning result even in demanding working conditions.
- Heavy duty steel chassis.
- Water cooled engines to withstand hot climates and long working shifts.
- Power steering for easy and pleasant use.
- Hopper garbage compacting system to increase hopper capacity.
- Low maintenance, fully hydraulic function.
- No electronics on board.
- SBS. System: the constant pressure system (patent).
This exclusive system is designed to keep a constant brush pressure in a very simple way this avoid useless brush and energy consumption.
- Brushes automatically lifts up whenever the sweeper is turned off. This avoid brushes deformation and increase brushes live (patented system).
- No belts turbine drive requires no maintenance.

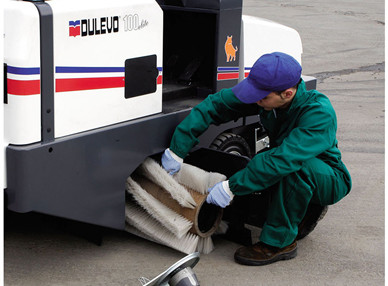

- No tools needed to change main broom.
- Easy access to filter for inspection and cleaning.
- Powerful filter shaker.
- Hopper manual opening hatch to load large debris.
- Quick battery pack change.
- Ergonomics are a big plus of this rider industrial sweeper. Very large space for legs, comfortable drive position, very few and simple switches makes the machine pleasant to use and quick to learn.
Technical Data:
Technical data | 100EH | 100DK |
Sweeping width | ||
With central bursh only(stand) | 1000mm | 1000mm |
With right side brush (Standard) | 1350mm | 1350mm |
With two side brushes (opt) | 1700mm | 1700mm |
With two side brushes and the third brush(opt.) | 2000mm | 2000mm |
Side brush diameter | 600mm | 600mm |
Central brush diameter | 380mm | 380mm |
Cleaning performance | 18000m2/h | 18000m2/h |
Waste hopper capacity | 400Lt. | 400Lt. |
Maximum Dumping height | 1500mm | 1500mm |
Filter surface size | 7.5m2 | 7.5m2 |
Maximum speed | 10.5km/h | 10.5km/h |
Weight | 1130kg | 1230kg |
Engine | ||
Make and model | BEST MOTOR | 久保田KUBOTA D1105 |
Cylinders | - | 3 |
Fuel | 36V BATTERY | DIESEL |
Maximum power | 4kw | 18kw |
Cooling system | - | LIQUID |
Length | 2315mm | 2315mm |
Width | 1410mm | 1410mm |
Height | 1540mm | 1540mm |
