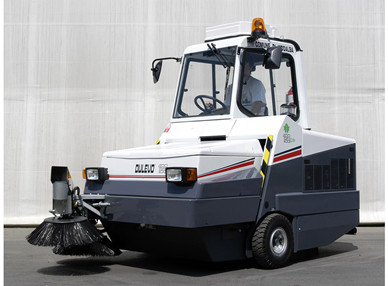

Product name: Dulevo 120 Elite sweeper of driving type
Applicable scope: Industry、Municipal Sanitation
Product modle: 120DK、120EH、120GF
Producing area: Italy
Brand: Dulevo
Product Description:
If dust is your problem, the ride-on Dulevo 120 Elite sweeper is more than a simple solution, it is an extraordinary opportunity. Designed to work in any environment, the 120 is a one of a kind machine: Solid, reliable, and noiseless.
Capable of collecting both the finest dust and gravel, this sweeper is ideal for all applications in the heavy industry, and is also suited for the use in public environments as well as in loading/unloading areas such as warehouses, quays, parking lots, and anywhere there is need of a machine capable of carrying out heavy duties in an agile and maneuverable manner.
Three different versions (electric, gasoline, and diesel) allow you to choose the most suited machine for each work environment.
Product Information:
1.The direct collection system

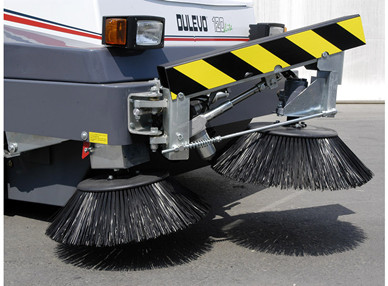

The collection is carried out through the side brushes, which send the debris toward the centre of the machine, where the central cylindrical brush hurls it at high speed directly into the container. The dust is sucked and kept in the container thanks to the depression created by a high capacity and prevalence suction fan. The fabric filtering system completes the sleeping cycle, guaranteeing the introduction in the environment of only clean air.
2.Standard filtering system up to 3 microns...
Designed to retain the finest particles, the standard polyester pocket filtering system makes it an ideal machine to be employed in environments with a high concentration of dust. Thanks to the particular "pocket" conformation, the 120 Elite sweeper has a minimal bulk filtering surface exceeding 10 m2, which allows the reduction of jolting time.
? And if that's not enough, choose the Gore
If the work environment is particularly dusty or if what you are looking for is a machine that guarantees a total control over fine particles such as PM10, PM5, and PM2,5, then the Dulevo 120 Elite sweeper is the answer to your needs. The extraordinary filtering GORE® materials strongly increase performance, guaranteeing longer durability, easy clearing, reduced maintenance, a 35% increase in air capacity: All this for a better sweeping quality.
120 Elite: All you can ask from a sweeper. And even more
The ride-on Dulevo 120 Elite has all the characteristics of the best industrial machines: A wide container, great power, excellent sweeping performance and a really efficient suction system.
Product Features:
1.Heavy duty steel frame
2.Water-cooled motors suited for hot climates and long working shifts
3.Standard power steering, for a more comfortable and pleasant driving
4.Compaction system inside the caisson designed to increase the collection capacity
5.No electronics
6.Standard bulky refuse port
7.Replacement of the central brush without tools
8.And as of today, Elite also becomes "MAXI"
To answer the more and more various industry needs, as of today the 120, too, is available in the MAXI version, which features the following standard options:
- Double suction cartridge + Vortex pre-filter
- Lighting system
- Rubber perimetric bumper
- GORE® fabric filter
Technical Data:
Technical data | 120EH | 120GF | 120DK |
Sweeping width | |||
With central bursh only(Standard) | 1200mm | 1200mm | 1200mm |
With right side brush (Standard) | 1500mm | 1500mm | 1500mm |
With two side brushes | 1800mm | 1800mm | 1800mm |
With side brushes and the third brush(opt.) | 2050mm | 2050mm | 2050mm |
Side brush diameter | 600mm | 600mm | 600mm |
Central brush diameter | 380mm | 380mm | 380mm |
Cleaning performance | 21000m2/h | 21000m2/h | 21000m2/h |
Waste hopper capacity | 450Lt. | 450Lt. | 450Lt. |
Maximum Dumping height | 1500mm | 1500mm | 1500mm |
Filtering surface size | 10m2 | 10m2 | 10m2 |
Maximum speed | 12km/h | 12km/h | 12km/h |
Weight | 1180kg | 1370kg | 1380kg |
Engine | |||
Make and model | AMRE | FORD TSG416 | 久保田KUBOTA V1505 |
Cylinders | - | 4 | 4 |
Fuel | 48VBATTERY | LPG | DIESEL |
Maximum power | 10kw | 32.3kw | 25kw |
Cooling system | - | LIQUID | LIQUID |
Length | 2500mm | 2500mm | 2500mm |
Width | 1560mm | 1560mm | 1560mm |
Height | 1540mm | 1540mm | 1540mm |
